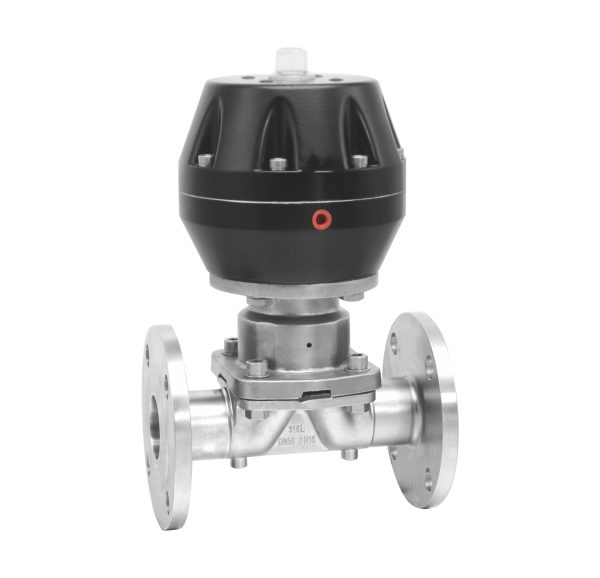

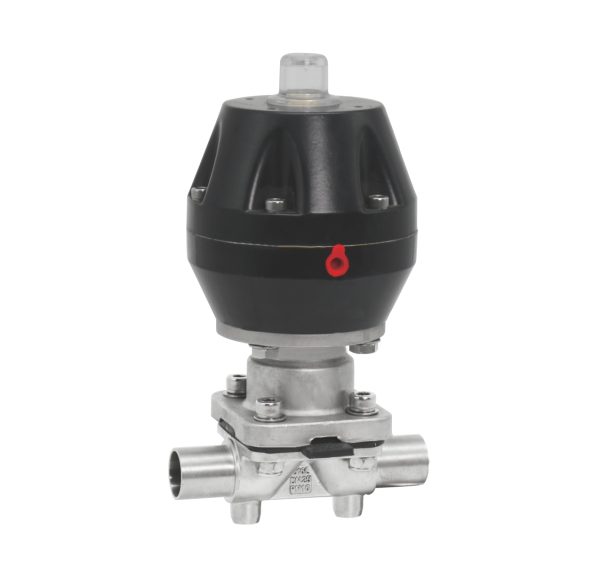

Description
Clamp SW sanitary diaphragm valve is a high-performance, precision-engineered solution for industries requiring stringent hygiene standards. Manufactured from durable SS316L stainless steel, this valve ensures superior corrosion resistance and longevity, making it ideal for demanding applications. Featuring a diaphragm made from EPDM+PTFE, it delivers excellent chemical resistance, flexibility, and a reliable seal, even under challenging conditions.
Available in sizes ranging from 1/2″ to 4″, this sanitary diaphragm valve offers versatile configurations to suit varied system requirements. Its design minimizes dead spaces, enabling efficient cleaning and reducing the risk of contamination, which is crucial for industries like pharmaceuticals, food and beverage production, and other sanitary applications.
Applications
The SW sanitary diaphragm valve is tailored to meet the needs of industries where hygiene and safety are critical.
– Pharmaceuticals: Ensures sterile processing and prevents contamination during the production of medicines and biotech products.
– Food and Beverage: Maintains product purity by delivering hygienic flow control in the handling of liquids, pastes, and semi-solids.
– Sanitary Environments: Perfect for applications involving sensitive processes, such as cosmetics manufacturing and cleanroom operations.
With robust features like SS316L construction and an EPDM+PTFE diaphragm, this valve ensures compliance with strict industry standards while supporting Clean-in-Place (CIP) and Sterilize-in-Place (SIP) processes for efficient maintenance. Optimize your process efficiency and uphold product integrity with this dependable, high-quality valve.
| Body | SS316,SS316L | |
| Diaphragm Material | EPDM, EPDM+PTFE | |
| Size | 3/8″-4″ | |
| Standard | ISO1127, DIN11850, | |
| Connection | Flange, Clam, SW | |
| Actuator material | Aluminum Alloy | |
| Pressure | PN10 | |
| Air supply pressure | 5.5bar | |
| Pneumatic Actuator | Double acting,Single acting normally closed, acting,Single normally open | |
| Option | solenoid valve,?limit switch box?, filter, E/P positioner, hand wheel | |
?

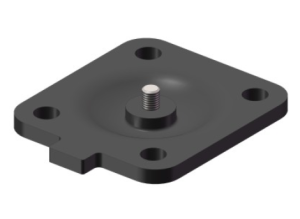

EPDM+PTFE Double layer diaphragm
The EPDM and PTFE diaphragm is engineered for durability and efficiency. When the valve is closed, the diaphragm’s design ensures a secure seal with the valve body, minimizing stress and extending its lifespan. Built to endure high temperatures and demanding working conditions, it offers reliable performance in challenging environments.
Specifications:
- Size range: DN25-DN100
- Double-layer diaphragm temperature tolerance: -20°C to 150°C
EPDM Single layer diaphragm
The single-layer diaphragm is reinforced with a vulcanized fiber layer, enhancing its mechanical strength and durability. Engineered for high sealing stability under rising pressure and temperature, it ensures reliable performance in demanding conditions. The diaphragm’s reinforcing fiber is hardened on stainless steel bolts, improving rubber-to-metal adhesion and overall cohesion. This design makes it particularly suitable for operations in vacuum environments.
Specifications:
– Size range: DN6-DN100
– Rubber diaphragm temperature tolerance: -10°C to 100°C
FAQ
What is a Clamp SW sanitary diaphragm valve?
Clamp SW sanitary diaphragm valve is a flow-control device designed for hygienic applications. It features a clamp-style connection for easy installation and removal, and is engineered to meet the strict cleanliness standards of industries like pharmaceuticals and food production.
How does the clamp connection benefit users?
The clamp connection allows for quick assembly and disassembly without the need for specialized tools. This design simplifies maintenance, system modifications, and cleaning, reducing downtime and improving efficiency in sanitation processes.
What materials are typically used in these valves?
These valves are primarily constructed from SS316L stainless steel, known for its exceptional corrosion resistance and durability. The diaphragm is often made from EPDM+PTFE, which provides a flexible, chemically resistant, and reliable seal, even in challenging process conditions.
What industries commonly use this type of valve?
Clamp SW sanitary diaphragm valves are widely adopted in industries that demand stringent hygiene, such as pharmaceuticals, food and beverage, biotechnology, and cosmetics manufacturing.
How does it ensure hygiene and safety?
This valve incorporates a design that minimizes dead spaces, reducing the risk of contamination. The use of high-grade materials creates a clean, inert surface for the flow of process media. Additionally, it supports CIP (Clean-in-Place) and SIP (Sterilize-in-Place) procedures, ensuring compliance with strict hygiene regulations.
Diaphragm valve catalog download
