Description

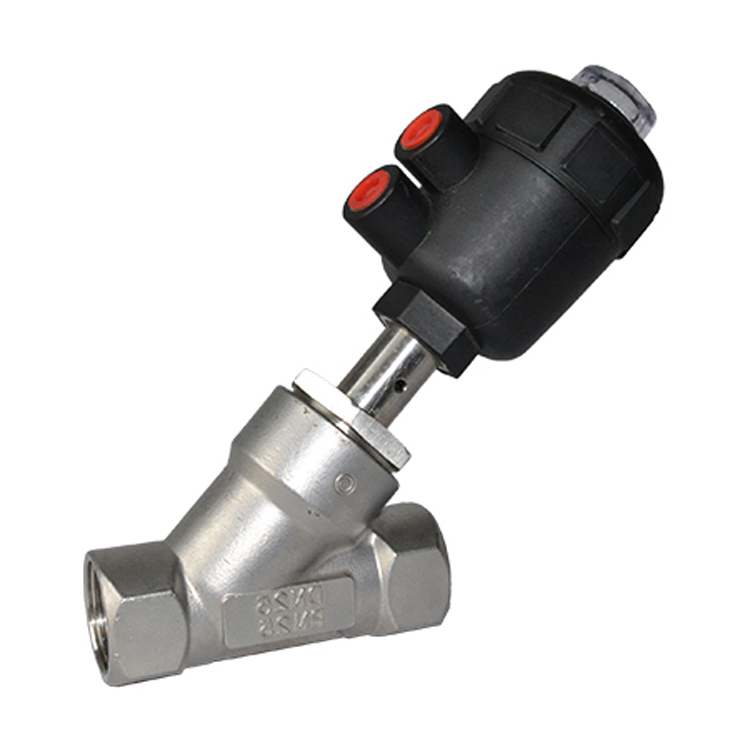

Pneumatic Angle Seat Valve offers superior performance, featuring a stainless steel (CF8, CF8M, CF3M) or bronze body and a durable SS316 valve core. Part of our range of angle seat valves, angle piston valves, and air operated valves, it’s available in sizes 1/2” to 4” (DN15-DN100) with PTFE/RPTFE seats and connections including thread, flange, welding, and clamp. Designed for gas, water, and oil applications, it supports pressures PN16-PN25 and ANSI 150LB. Actuator options include double acting, single acting normally closed, or single normally open, ensuring reliable flow control across industries.
| Body | Stainless steel, CF8,CF8M,CF3M,?Bronze | |
| Valve core | SS316 | |
| Size | 1/2”~4” DN15-DN100 | |
| Seat | PTFE,RPTFE | |
| Connection | Thread, flange, welding, clamp | |
| Actuator material | Stainless steel, polyurethane | |
| Pressure | PN16-PN25，ANSI 150LB | |
| Medium | Gas, Water and Oil, etc | |
| Pneumatic Actuator | Double acting,Single acting normally closed, acting,Single normally open | |
| Option | solenoid valve,?limit switch box?, filter, E/P positioner, hand wheel | |
FAQ
What materials are used in the construction of the Pneumatic Angle Seat Valve?
The valve body is available in stainless steel (CF8, CF8M, CF3M) or bronze for durability and corrosion resistance, with a valve core made of SS316 for superior strength and performance.
What sizes are available for the Pneumatic Angle Seat Valve?
The valve comes in a range of sizes from 1/2” to 4” (DN15-DN100), accommodating various application needs.
What seat materials are used in the valve?
The seats are made from PTFE or RPTFE, ensuring excellent sealing, chemical resistance, and durability.
What connection options are available?
There are multiple connection types available, including thread, flange, welding, and clamp, allowing for flexibility in installation.
What mediums can the Pneumatic Angle Seat Valve handle?
The valve is designed for efficient control of gas, water, oil, and other compatible mediums.
