Description

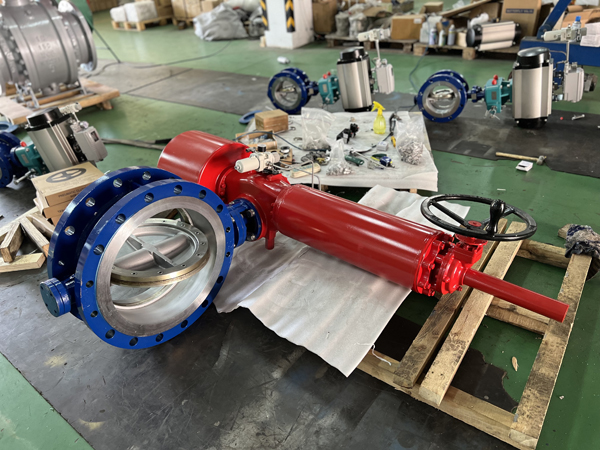

High performance triple eccentric butterfly valve, Featuring a robust body made from ductile iron, WCB, or stainless steel, this double offset design enhances sealing efficiency and minimizes wear. Equipped with premium disc materials including SS304, SS316, SS316L, and super duplex steel, and paired with PTFE or RPTFE seats, it guarantees reliable operation under extreme conditions. With versatile connections like wafer, lug, and flanged options, and sizes ranging from 2”~40” (DN50-DN1000), this valve achieves excellence across pressure ratings from PN16-PN40, 10-20K, and 150-300LB. Whether you need a triple offset butterfly valve or a tri eccentric butterfly valve
| Body | Ductile iron,WCB, stainless steel | |
| Body stlye | double offset | |
| Disc | SS304,SS316,SS316L,Super duplex steel | |
| Seat | PTFE,RPTFE | |
| Connection | wafer,lug,flanged | |
| Size | 2”~40” DN50-DN1000 | |
| Pressure | PN16-PN40,10-20K,150-300LB | |
| Medium | Gas, Water and Oil, etc | |
| Electric Actuator | ON-OFF type、Regulation type 4-20mA | |
| Voltage | 12 VDC,24 VAC,24 VDC,220 VAC,120 VAC,380 VAC 50/60 Hz ±10% | |
FAQ
What makes a high performance butterfly valve different from a standard one?
High performance butterfly valves feature advanced designs such as double offset or triple offset mechanisms, providing superior sealing, reduced friction, and durability under high pressure and temperature. This makes them ideal for demanding industrial applications.
Which materials are used to construct high performance butterfly valves?
These valves are crafted using robust materials such as ductile iron, WCB, and stainless steel for the body, with disc options in SS304, SS316, SS316L, and super duplex steel. PTFE or RPTFE seats ensure excellent chemical resistance and tight sealing.
What industries benefit most from using high performance butterfly valves?
High performance butterfly valves are widely used in industries like oil and gas, chemical processing, power generation, and water treatment, where extreme pressure, temperature, and corrosive mediums are typical.
