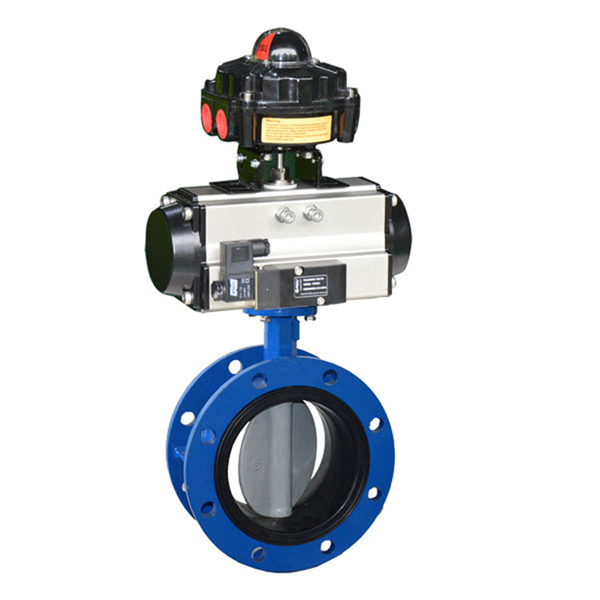

flanged butterfly valve? with pneumatic actuator

Body: DI,WCB,CF8,CF8M,CF3M
Disc: SS304,SS316,SS316L
Seats: NBR,EPDM,VITON,FKM
Body stlye:? Lug wafer
Stem: Stainless Steel
Size: 2″ – 60″ (50mm – 1500mm)
End: PN10,PN16,5K,10K,16K,150LB
Pneumatic actuator: Double acting,Single acting
Accessories: Solenoid valve, limit switch box , filter, E/P positioner, hand wheel







    Description

    High-performance butterfly flange valve. This double flanged butterfly valve is built with a durable flanged body style, utilizing materials like ductile iron, WCB, and stainless steel. Offering robust disc options in SS304, SS316, SS316L, and super duplex steel, and seats available in NBR, EPDM, and VITON, it ensures reliability across various conditions. Supporting wafer, lug, and flanged connections, the butterfly valve double flanged is available in sizes from 2” to 60” (DN50-DN1500) with pressure ratings of PN10, PN16, 5k, 10k, and 150lb

    Body Ductile iron,WCB, stainless steel
    Body stlye Flanged
    Disc SS304,SS316,SS316L,Super duplex steel
    Seat NBR,EPDM,VITON
    Connection wafer,lug,flanged
    Size 2”~60” DN50-DN1500
    Pressure PN10 PN16 5k 10k 150lb
    Medium Gas, Water and Oil, etc
    Pneumatic Actuator Double acting,Single acting normally closed, acting,Single normally open
    Option solenoid valve,?limit switch box?, filter, E/P positioner, hand wheel

    flanged butterfly valve

    FAQ

    What are the primary advantages of flanged butterfly valves?

    Flanged butterfly valves provide a secure and robust connection to piping systems, ensuring reliable sealing even under high-pressure conditions. They offer ease of installation, simple alignment, and enhanced durability in demanding environments.

    How do flanged butterfly valves differ from other connection types?

    Unlike wafer and lug styles, flanged butterfly valves feature integrated flanges that bolt directly to the pipeline flanges. This creates a more rigid connection and minimizes the risk of leakage, making them ideal for critical applications.

    What materials are commonly used for flanged butterfly valves?

    Flanged butterfly valves often include disc options in SS304, SS316, SS316L, or super duplex steel for excellent corrosion resistance. Seat materials such as NBR, EPDM, and VITON are utilized to cater to various temperature and chemical compatibility requirements.

    What sizes and pressure ratings are available for flanged butterfly valves?

    Flanged butterfly valves are available in sizes ranging from DN50 to DN1500 (2” to 60”) with pressure ratings typically including PN10, PN16, 150lb, and more. These options provide versatility for handling a wide range of system demands.

    Butterfly valve catalog download

    butterfly valve pdf Download? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?butterfly valve pdf Download

    Wafer butterfly valve pdf? ? ? ? ? ? ? ? ? ? ? ? ? ? Lug butterfly valve pdf
