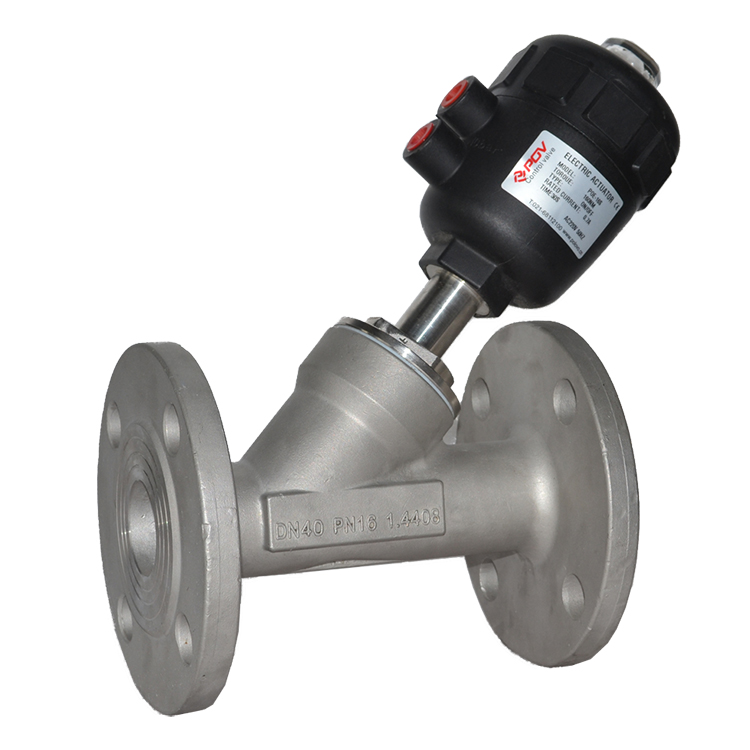

Pneumatic Angle Seat Valve
Angle seat valves?
Angle seat valves?

Angle seat valves?

Body: Stainless steel, CF8,CF8M,CF3M,?Bronze
Valve core SS316
Seats: PTFE,RPTFE
Connection：Thread, flange, welding, clamp
Stem: Stainless Steel
Size: 1/2″ – 4″ (15mm – 100mm)
End: PN16-PN25, ANSI 150LB
Pneumatic actuator: Double acting,Single acting
Accessories: Solenoid valve, limit switch box , filter, E/P positioner, hand wheel







    Description

    Pneumatic angle seat valves are precision-engineered for reliability and performance in industrial applications. Built with durable body materials like Stainless Steel (CF8, CF8M, CF3M) or Bronze, and featuring a robust SS316 valve core, they handle demanding conditions with ease. Available in sizes 1/2”~4” (DN15-DN100), these pneumatic valves offer superior sealing with PTFE and RPTFE seats. Multiple connection options.thread, flange, welding, clamp

    Body Stainless steel, CF8,CF8M,CF3M,?Bronze
    Valve core SS316
    Size 1/2”~4” DN15-DN100
    Seat PTFE,RPTFE
    Connection Thread, flange, welding, clamp
    Actuator material Stainless steel, polyurethane
    Pressure PN16-PN25，ANSI 150LB
    Medium Gas, Water and Oil, etc
    Pneumatic Actuator Double acting,Single acting normally closed, acting,Single normally open
    Option solenoid valve,?limit switch box?, filter, E/P positioner, hand wheel

    Pneumatic Angle Seat Valve

    FAQ

    What industries commonly use angle seat valves?

    Angle seat valves are widely used in industries that require precise flow control and high durability. Key industries include chemical processing, pharmaceutical manufacturing, food and beverage production, water treatment facilities, and HVAC systems. Their versatility and reliability make them a preferred choice for controlling various mediums in demanding applications.

    What types of mediums can angle seat valves handle?

    Angle seat valves are designed to control a variety of mediums, including liquids, gases, and vapors. These valves are particularly effective in managing high-temperature steam, aggressive chemicals, and water, making them suitable for many industrial setups. Their PTFE and RPTFE sealing materials ensure leak-proof performance across diverse applications.

    What pressure ratings can angle seat valves withstand?

    Angle seat valves are suitable for a broad range of pressure environments. They are rated to handle pressures up to PN16-PN25 or ANSI 150LB, ensuring optimal performance in high-pressure systems. This makes them ideal for applications that demand consistent reliability under intense operating conditions.

    What connection options are available for angle seat valves?

    Angle seat valves offer multiple connection types to suit different system setups, including **thread, flange, welding, and clamp** connections. This adaptability makes them easy to integrate into both standard and customized pipeline systems used across industries.
