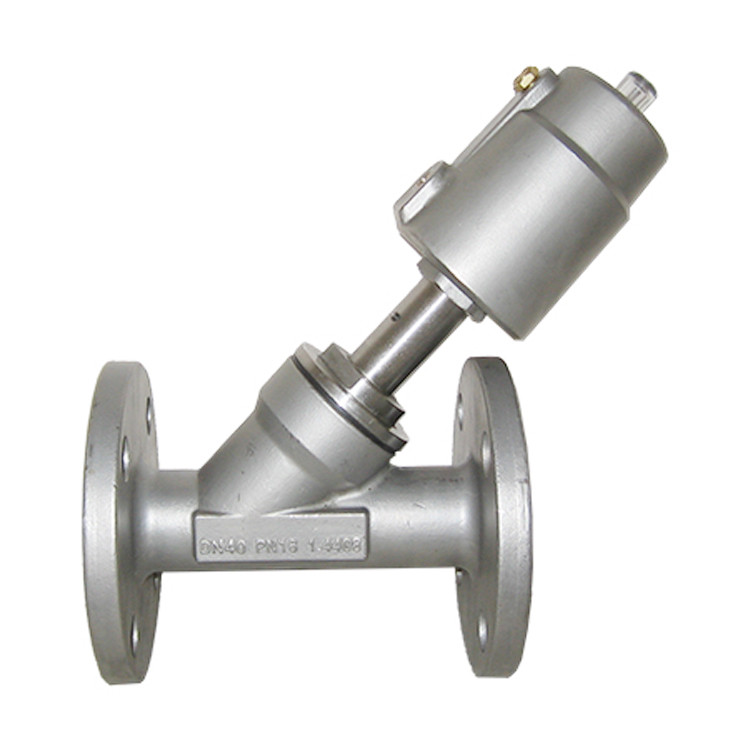

Pneumatic Angle Seat Valve
Angle seat valves?
Angle seat valves?

angle body piston valve?

Body: Stainless steel, CF8,CF8M,CF3M,?Bronze
Valve core SS316
Seats: PTFE,RPTFE
Connection：Thread, flange, welding, clamp
Stem: Stainless Steel
Size: 1/2″ – 4″ (15mm – 100mm)
End: PN16-PN25, ANSI 150LB
Pneumatic actuator: Double acting,Single acting
Accessories: Solenoid valve, limit switch box , filter, E/P positioner, hand wheel







    Description

    Angle Body Piston Valve delivers precision and durability for industrial use. Built with Stainless Steel (CF8, CF8M, CF3M) or Bronze body and a robust SS316 valve core, it is available in sizes 1/2” to 4” (DN15-DN100). Functioning as a Pneumatic Angle Seat Valve, it ensures efficient flow control of gases, water, and oils. This pneumatic control valve is ideal for automated systems

    Body Stainless steel, CF8,CF8M,CF3M,?Bronze
    Valve core SS316
    Size 1/2”~4” DN15-DN100
    Seat PTFE,RPTFE
    Connection Thread, flange, welding, clamp
    Actuator material Stainless steel, polyurethane
    Pressure PN16-PN25，ANSI 150LB
    Medium Gas, Water and Oil, etc
    Pneumatic Actuator Double acting,Single acting normally closed, acting,Single normally open
    Option solenoid valve,?limit switch box?, filter, E/P positioner, hand wheel

    Pneumatic Angle Seat Valve

    FAQ

    What industries commonly utilize angle body piston valves?

    Angle body piston valves are widely used across numerous industries due to their versatility and reliability. Common applications include chemical processing, water treatment, food and beverage production, pharmaceuticals, oil and gas, and manufacturing. Their robust design and adaptability make them suitable for challenging environments requiring precise flow control.

    What mediums can angle body piston valves handle?

    These valves are designed to control a range of mediums, including gases, water, oils, and steam. Their construction using materials like Stainless Steel (CF8, CF8M, CF3M) and Bronze ensures excellent resistance to corrosion and compatibility with various substances.

    What is the pressure rating for angle body piston valves?

    Angle body piston valves are built to withstand high-pressure applications, with pressure ratings typically ranging from PN16 to PN25 or ANSI 150LB, depending on the specific model. This makes them ideal even for demanding industrial systems.

    How do these valves integrate with automated systems?

    Angle body piston valves serve as essential components in pneumatic control systems. Operating as Pneumatic Angle Seat Valves, they enable efficient and reliable performance through actuator-driven mechanisms, making them perfect for automated processes.

    Why choose an angle body piston valve for industrial use?

    Their combination of durability, precision, and adaptability makes them an excellent choice for industries requiring robust flow regulation solutions. With superior sealing performance, a wide range of sizes (1/2” to 4” or DN15-DN100), and compatibility with a variety of mediums, they ensure optimized control and extended service life in industrial environments.
