Description

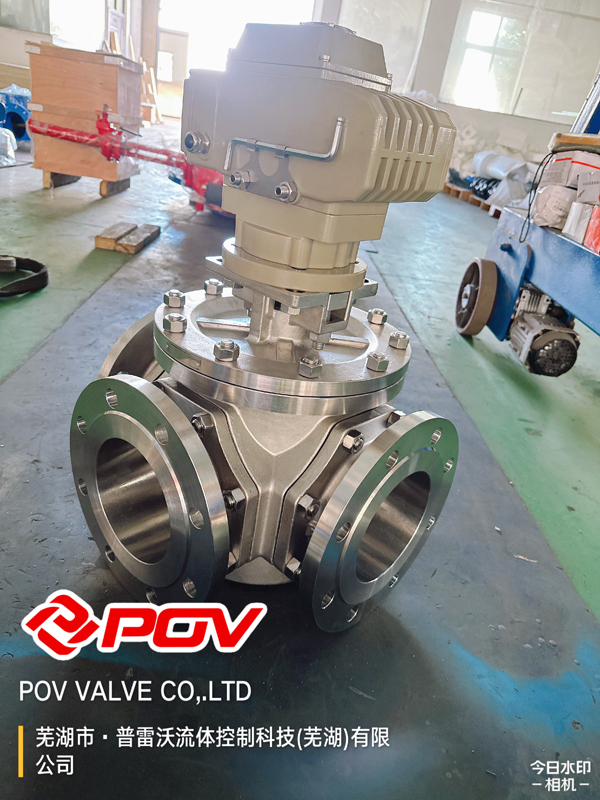

The 3 Way Port Ball Valve with an electric actuator offers reliable flow control in industrial systems. Featuring L port and T port configurations, it adapts easily to diverse pipeline setups. Compatible with AC220V, AC380V, and DC24V power options, this ON-OFF type valve supports 4-20mA control for superior automation. Manufactured from robust WCB, CF8M, and CF3M materials
| Body | WCB, CF8M, CF8M or other | |
| Body stlye | T port, L port | |
| Ball | SS304,SS316,SS316L | |
| Seat | PTFE,RPTFE | |
| End | BSP, BSPT, NPT, Flange, Clamp, SW | |
| Size | 1/2”~8” | |
| Pressure | 1.6Mpa, 2.5Mpa, 4.0MPa | |
| Medium | Gas, Water and Oil, etc | |
| Electric Actuator | ON-OFF type、Regulation type | |
| Power: | 12 VDC,24 VAC,24 VDC,220 VAC,120 VAC,380 VAC 50/60 Hz ±10% | |

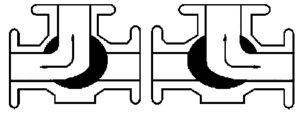

Three way T type flow diagram

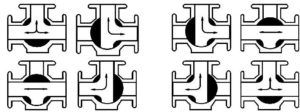

Three way L type flow diagram
FAQ
What is a 3 Way Ball Valve with an Electric Actuator?
3 Way Ball Valve with an electric actuator is a flow control device used in industrial systems. It features an electric actuator that automates valve operation and directs fluid flow through three ports.
What power options are compatible with the electric actuator?
The electric actuator is compatible with AC220V, AC380V, and DC24V power supplies. It also supports ON-OFF operation and 4-20mA control for enhanced automation.
What are L port and T port configurations?
L Port allows fluid to flow between two specific ports at a time, making it ideal for diverting applications.T Port enables fluid to flow between three ports simultaneously or to select any combination of the ports, providing more flexibility for mixing or diverting.
What materials are available for the valve?
The 3 Way Ball Valve is available in WCB (carbon steel), CF8M (316 stainless steel), and CF3M (316L stainless steel). These materials ensure durability and corrosion resistance, even in harsh environments.
What industrial applications is it suitable for?
This valve is commonly used in industries like chemical processing, water treatment, oil and gas, HVAC systems, and food and beverage production. Its versatility and durability make it ideal for fluid diversion, mixing, and isolation.
