Comparing Class 150 and ANSI 300 Flange Ratings

Understand key differences between Class 150 and ANSI 300 flanges.

Class 150 pressure rating flanges hold less pressure than ANSI 300 flanges. Picking the right rating keeps systems safe and working well. For example, engineers put in a butterfly valve or a ball valve in a high-pressure line. They must check the flange class. Using a class 150 pressure rating in a system made for higher pressure can cause leaks or failures. Picking the right flange also changes the cost and the choice between electric valve or pneumatic valve operation.

Pressure Rating Basics

Class 150 pressure rating

Class 150 pressure rating flanges are used in low-pressure systems. You can find these flanges in water pipes and HVAC systems. Some chemical plants use them too. The class 150 pressure rating does not mean it always holds 150 psi. The real pressure limit changes when the temperature changes. For example, a carbon steel class 150 pressure rating flange can take 285 psi at 100°F. If the temperature goes up, the pressure limit goes down. At 400°F, it can only take 170 psi. This is why class 150 pressure rating flanges are good for medium pressure and temperature.

ANSI 300 rating

ANSI 300 flanges can handle more pressure than class 150 flanges. These flanges are used in steam lines and oil and gas systems. They are also used in other high-pressure jobs. At 100°F, a carbon steel ANSI 300 flange can take 740 psi. At 400°F, it can take 570 psi. The ANSI 300 rating gives more safety for higher pressure or temperature. These flanges have thicker bodies and stronger bolts than class 150 flanges.

Pressure vs. Temperature

Flange pressure ratings do not stay the same at every temperature. When the temperature goes up, the pressure a flange can take goes down. This happens because metal gets weaker when it is hot. The table below shows how pressure limits change for class 150 and ANSI 300 flanges made from ASTM A105 carbon steel, using ASME B16.5 rules.

Note: The numbers in the table are from ASME B16.5 for ASTM A105 carbon steel. Always check the material and temperature before picking a flange.

The numbers in the class name do not show the real pressure rating in psi. For example, class 150 pressure rating flanges can hold more than 150 psi at room temperature. The pressure rating always goes down as the temperature goes up. Engineers must check both pressure and temperature when they pick a flange.

Class 150 300 Flange Standard Dimensions

Standard dimensions help engineers and installers match flanges to pipes and valves. These measurements ensure that parts fit together and work safely under pressure. When comparing class 150 pressure rating flanges to ANSI 300 flanges, the differences in size, thickness, and bolt patterns become clear. These differences come from the need to handle different pressure levels.

Class 150 Flange Dimensions

Class 150 flanges appear in many low-pressure systems. Their dimensions follow ASME B16.5 standards. The table below shows typical sizes for a few common pipe sizes. These measurements include the nominal pipe size (NPS), outside diameter (OD), number of bolt holes, bolt hole diameter, flange thickness, and bolt circle diameter.

NPS	DN	OD	PCB	Bolt	n-bolt
1/2	DN15	89	60.5	16	4
3/4	DN20	99	69.8	16	4
1	DN25	108	79.2	16	4
11/4	DN32	117	88.9	16	4
11/2	DN40	127	98.6	16	4
2	DN50	152	120.6	19	4
21/2	DN65	178	139.7	19	4
3	DN80	190	152.4	19	4
31/2	(DN90)	216	177.8	19	8
4	DN100	229	190.5	19	8
5	DN125	254	215.9	22.5	8
6	DN150	279	241.3	22.5	8
8	DN200	343	298.4	22.5	8
10	DN250	406	362	25.5	12
12	DN300	483	431.8	25.5	12
14	DN350	533	476.2	28.5	12
16	DN400	597	539.8	28.5	16
18	DN450	635	577.8	32	16
20	DN500	693	635	32	20
22	(DN550)	749	692.2	35	20
24	DN600	813	749.3	35	20

Note: These values come from ASME B16.5. Always check the latest standard for exact measurements.

When reading the table, NPS shows the pipe size that matches the flange. OD means the total width across the flange. The number of bolt holes and their diameter affect how the flange connects to other parts. Flange thickness and bolt circle diameter help determine the strength and fit of the connection.

Class 300 Flange Dimensions

ANSI 300 flanges look similar but have key differences. They must handle higher pressure, so they are thicker and often have more bolt holes. For example, a 3-inch Class 150 flange has 4 bolt holes, while a 3-inch Class 300 flange has 8. The raised face height stays the same at 1/16 inch for both classes. The bore, or the hole in the center, matches the pipe size for both classes.

Tip: Class 300 flanges weigh more and take up more space than Class 150 flanges. This extra size helps them handle higher pressure.

When choosing between these flanges, engineers look at the system’s pressure and temperature. They also check if the flange matches the pipe and valve. Using the wrong size or class can cause leaks or failures. Always compare the dimensions and pressure ratings before making a choice.

Physical Differences

Size and Thickness

Class 150 pressure rating flanges and ANSI 300 flanges are not the same size. ANSI 300 flanges are thicker and have a bigger outside diameter. This extra thickness lets them hold more pressure. For example, a 4-inch class 150 pressure rating flange is about 0.94 inches thick. A 4-inch ANSI 300 flange is about 1.12 inches thick. The outside diameter gets bigger with a higher pressure class. ANSI 300 flanges look bigger and heavier. This size difference changes how much room the flange needs in a pipe system.

Tip: Thicker flanges are stronger and safer for high-pressure systems.

Bolt Patterns

Bolt patterns are also different between these two flange classes. ANSI 300 flanges use more bolts and sometimes bigger bolt holes. For example, a 3-inch class 150 pressure rating flange uses 4 bolts. A 3-inch ANSI 300 flange uses 8 bolts. The bolt circle diameter gets bigger with a higher pressure class. More bolts make a tighter and stronger seal. This helps stop leaks when the system has more pressure. The bolt pattern must match the other flange or valve for a safe fit.

• Class 150: Fewer bolts, smaller bolt circle
• ANSI 300: More bolts, larger bolt circle

Materials

Both flange classes use the same kinds of materials. The material choice matters more at higher pressures. Makers often use carbon steel, stainless steel, or alloy steel for both classes. ANSI 300 flanges may need better materials to handle more stress. The material must fit the fluid, temperature, and pressure in the system. For example, a chemical plant may use stainless steel for both classes. The ANSI 300 flange might need a thicker or stronger grade. The material you pick changes how long the flange lasts and how safe it is.

Note: Always check the material’s pressure and temperature limits before picking a flange.

Applications

Class 150 Uses

Class 150 flanges are used in low-pressure systems. Water treatment plants use them for clean water pipes. HVAC systems use Class 150 flanges because the pressure is low. Food and drink factories pick these flanges for safe liquids. Some chemical plants use them for mild chemicals. These chemicals do not need high pressure. Fire protection systems, like sprinklers, use Class 150 flanges. The pressure in these lines does not get very high.

Tip: Class 150 flanges save money in big systems that do not need high pressure.

ANSI 300 Uses

ANSI 300 flanges are for higher pressure and temperature jobs. Oil and gas companies use them for crude oil, gas, or steam pipes. Power plants put ANSI 300 flanges in steam and boiler lines. Chemical plants use them for hot or strong chemicals. Refineries and shipyards use ANSI 300 flanges for fuel and process pipes. These flanges give more safety when pressure changes fast or gets high.

A quick comparison of typical uses:

Industry Standards

Both Class 150 and ANSI 300 flanges follow strict rules. The main rule is ASME B16.5. This rule sets the size, pressure, and material limits. Many jobs need flanges that meet this rule for safety. Engineers check these rules before picking a flange. Some jobs, like oil and gas, need higher pressure ratings. Water and HVAC jobs use Class 150 flanges if the pressure is safe. Power plants and refineries often need ANSI 300 flanges for more safety.

Note: Always check the newest ASME and industry rules before picking a flange for any job.

Selection Guide

Key Factors

You need to think about a few things when picking between Class 150 and ANSI 300 flanges. Every system is different. Picking the right one keeps everything safe and working.

Pressure & Temperature

Pressure and temperature are very important. Class 150 pressure rating flanges are good for lower pressure and lower temperature. ANSI 300 flanges work for higher pressure and higher temperature. Engineers must look at the highest pressure and temperature in the system. They need to check if these numbers fit the flange class limits. If the pressure or temperature is too high for class 150 pressure rating, they should use an ANSI 300 flange.

Safety & Cost

Safety is always most important. Using a flange with a higher rating can make things safer. But flanges with higher ratings cost more and are heavier. Class 150 flanges are cheaper and easier to put in. ANSI 300 flanges are safer for hard jobs but cost more. Engineers must think about both safety and cost. Never pick a flange with a lower rating than what the system needs.

Tip: Always add a little extra safety when picking a flange. This helps if the pressure or temperature goes up suddenly.

Common Mistakes

People sometimes make mistakes when picking flanges. Here are some common ones:

• They think the flange class number is the real pressure rating. The class number does not show the true pressure rating.
• They forget that temperature changes the pressure rating.
• They mix up bolt patterns or sizes between the two classes.
• They do not check if the material is right for the fluid or gas.
• They use a class 150 pressure rating flange when a higher rating is needed.

Alert: Picking the wrong flange can cause leaks, damage, or safety problems.

Quick Tips

Here is a simple checklist to help you pick the right flange:

1. Find out the highest pressure and temperature in the system.
2. Check the pressure and temperature limits for each flange class.
3. Add a little extra for safety.
4. Make sure the flange size and bolt pattern fit the pipe and valve.
5. Pick the right material for the fluid or gas.
6. Check the flange class again before you buy or install it.

? Remember: If you are not sure, ask an engineer or look at the ASME B16.5 standard.

Common Valve Types for ANSI 300 Pressure Rating

Gate Valves

Gate valves are used a lot with ANSI 300 pressure rating. These valves have a flat gate that moves up and down. When the gate is up, fluid can flow easily. There is not much resistance when the valve is open. Gate valves are best for jobs that need full flow in a straight line. Oil and gas pipes, steam lines, and high-pressure water systems use these valves with ANSI 300 flanges.

Comparison Points:

• Pressure Handling: ANSI 300 gate valves can take more pressure than Class 150 gate valves. This makes them safer for tough jobs.
• Size and Weight: ANSI 300 gate valves are bigger and heavier. The extra thickness helps them handle more force.
• Cost: These valves cost more than Class 150 gate valves. The higher price is because they use stronger materials and are built tougher.

Tip: Pick gate valves for turning flow on or off in high-pressure pipes. Do not use them to control flow speed, as this can hurt the gate.

Globe Valves

Globe valves control flow by moving a disc onto a seat. This design lets you change the flow very exactly. ANSI 300 globe valves are used where you need to control pressure and shut off flow. Power plants, chemical factories, and steam systems use globe valves with ANSI 300 pressure ratings.

Comparison Points:

• Flow Control: Globe valves control flow better than gate valves. They can change flow rates more exactly.
• Pressure Drop: These valves slow down the flow more. The pressure drop is higher than with a gate valve.
• Durability: ANSI 300 globe valves are made with stronger materials. They last longer in hot and high-pressure places.

Note: Globe valves are good for jobs that need lots of changes. They work well in systems where pressure and flow change often.

Ball Valves

Ball valves have a ball with a hole in the middle. Turning the handle opens or closes the flow. ANSI 300 ball valves shut off flow fast and seal tightly. Oil and gas, chemical plants, and high-pressure water systems use ball valves with ANSI 300 flanges.

Comparison Points:

• Operation: Ball valves open and close very fast. This makes them great for emergency shutoff.
• Sealing: These valves seal well, even at high pressure. ANSI 300 ball valves stop leaks better than many other valves.
• Versatility: Ball valves work with many fluids, like gases and slurries.

Alert: Always check what the valve is made of. ANSI 300 systems may need stainless steel or special alloys to stay safe and last longer.

Butterfly Valves

Butterfly valves are used in ANSI 300 pressure rating systems. These valves have a disc that turns to control flow. When the disc is turned with the flow, fluid moves through. If you turn the disc, it blocks the flow. ANSI 300 butterfly valves can take more pressure than Class 150 butterfly valves. This makes them good for hard jobs.

Many places use butterfly valves with ANSI 300 flanges. Power plants use them for cooling water and steam pipes. Chemical plants use them for lines that need fast shutoff. Oil and gas companies use these valves for moving fuel and gas. Butterfly valves do not take up much space because they are thinner than gate or globe valves.

Advantages of ANSI 300 Butterfly Valves:

• They open and close quickly
• They are lighter and smaller than other valves
• They work well for big pipes
• They cost less for large sizes

Comparison Table: Butterfly Valves in Class 150 vs. ANSI 300

Tip: ANSI 300 butterfly valves often use stronger materials, like stainless steel or special coatings, to handle more pressure and tough fluids.

When picking a butterfly valve for ANSI 300, engineers check the disc and seat material. The valve must fit the fluid and pressure. Some butterfly valves use double or triple offset designs for better sealing at high pressure.

Check Valves

Check valves stop fluid from going backward. In ANSI 300 pressure rating systems, these valves keep pumps and equipment safe. The valve opens when fluid moves the right way. If the flow goes back, the valve closes by itself.

ANSI 300 check valves are used in high-pressure steam, oil, and gas pipes. Power plants use them to keep steam moving forward. Chemical plants use them to stop backflow in process lines. Oil and gas systems use check valves to protect compressors and pumps.

Advantages of ANSI 300 Check Valves:

• They work by themselves—no need to control them
• They are strong enough for high-pressure jobs
• They have a simple design with few parts

Selection Considerations:

• Engineers pick the right type: swing, lift, or wafer check valves
• The valve body and disc must handle the system’s pressure and fluid
• The size and ends must fit the ANSI 300 flange

Note: Always check the pressure and temperature rating before picking a check valve for ANSI 300 systems. Using the right valve keeps the system safe and working well.

Common Valve Types for Class 150 Pressure Rating

Gate Valves

Gate valves are used a lot in Class 150 systems. They have a flat gate that moves up or down to let flow start or stop. These valves let fluid move both ways with little resistance. Water plants and HVAC systems use gate valves because they give a straight path for water or air. Gate valves work best when they are all the way open or closed.

Advantages and Limitations:

Gate valves are simple in design. They do not control how fast fluid moves, so they are not good for throttling. Big gate valves might leak if not put in right. These valves need more space than some other types.

Tip: Gate valves are good for systems that need a clear path and do not need to change often.

Globe Valves

Globe valves help control flow and shut off fluid in Class 150 service. They use a disc that moves onto a seat to block or let flow go. Globe valves can change flow rates better than gate valves. Chemical plants and building water systems use globe valves for this reason.

Advantages and Limitations:

Globe valves are good for stopping and controlling flow. They make more resistance, so there is a bigger pressure drop. These valves only let flow go one way. If you close them almost all the way, they can make noise or shake.

Note: Globe valves are best for jobs that need careful flow control, but they may not be good if you want to keep pressure high.

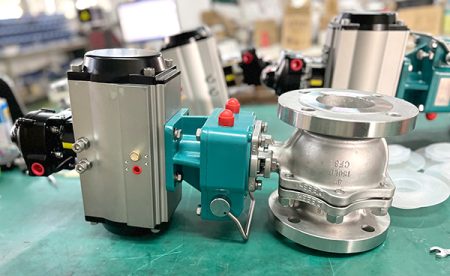

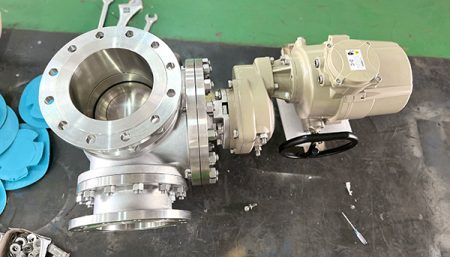

Ball Valves

Ball valves have a round ball with a hole in the middle. When you turn the handle, the hole lines up with the pipe and lets flow go. Ball valves open and close fast. They seal tightly, so leaks are less likely. Many places use ball valves in Class 150 systems for water, air, and mild chemicals.

Advantages and Limitations:

Ball valves are fast and seal well. They are good for turning flow on or off. The seat material can limit how hot the valve can get. Ball valves are longer than some other valves.

Selection Considerations:

• Stainless steel and carbon steel are common for Class 150 valves. These materials fight rust and handle pressure well.
• The valve material must match the fluid so it does not get damaged.
• Valve size should match the pipe to keep flow smooth.
• End connections must fit the pipes for a safe setup.

Each valve type has things it does well and things it does not. Gate valves are best for simple shutoff, globe valves are for flow control, and ball valves are for quick, tight closure. Pick the right valve based on what the system needs, the fluid, and how it will be put in.

Butterfly Valves

Butterfly valves are used a lot with Class 150 flanges. These valves have a round disc inside the pipe. The disc turns to let fluid move or to block it. If the disc is turned with the flow, fluid goes through. If you turn the disc, it stops the flow. Butterfly valves are good for turning flow on or off. They also help control flow in big pipes.

In Class 150 systems, butterfly valves have many good points. They need less space than gate or globe valves. Their shape makes them lighter and easy to put in. Water plants and HVAC systems use butterfly valves in small spaces. Food and drink factories use them for clean water and mild chemicals.

Butterfly valves in Class 150 systems work at lower pressures. They do not need thick bodies or heavy bolts. This makes them cheaper than valves for higher pressure. It is easy to fix them because the disc and seat are simple to reach. You can open or close these valves fast with a handle or gear.

Here is a table that compares butterfly valves to other valves in Class 150 systems:

Tip: Butterfly valves are best for big pipes and low pressure. They are not good for thick or dirty fluids. Dirt can block the disc.

When picking a butterfly valve for Class 150, engineers check the seat and disc. The valve must fit the fluid and temperature. Most Class 150 butterfly valves use rubber or soft seats for a tight seal. Stainless steel or coated discs help stop rust and wear.

Check Valves

Check valves let fluid move in just one way. They stop flow from going backward. This keeps pumps and other parts safe. In Class 150 systems, check valves protect water pipes, fire sprinklers, and mild chemical lines.

There are a few types of check valves for Class 150 flanges. Swing check valves have a disc that swings open with flow. It closes if the flow goes back. Lift check valves have a disc that moves up and down. Wafer check valves fit between two flanges and save space.

Check valves in Class 150 systems work at lower pressure and medium heat. They do not need thick walls or strong springs. This makes them light and easy to put in. They are easier to fix because they have few moving parts.

Here is a table that compares check valve types in Class 150 systems:

Note: Engineers must pick the right check valve for the job. The valve material should match the fluid to stop rust or damage. The ends must fit the Class 150 flange for a safe and tight setup.

Check valves in Class 150 systems give good protection from backflow. They are simple and save money for many low-pressure jobs.

Class 150 and ANSI 300 flanges are not the same. They have different pressure limits, thickness, and bolt patterns. ANSI 300 flanges can take more pressure and heat. Picking the right flange helps keep systems safe and working well. Here is a quick checklist to help you:

• Look at the system’s pressure and temperature.
• Make sure the flange class fits what you need.
• Check the size and bolt pattern.
• Read the industry rules.

For important jobs, engineers should check ASME B16.5 or ask an expert.

FAQ

What is the main difference between Class 150 and ANSI 300 flanges?

Class 150 flanges handle lower pressure than ANSI 300 flanges. ANSI 300 flanges have thicker bodies and more bolts. This makes them stronger and safer for high-pressure systems.

Can you use a Class 150 flange instead of an ANSI 300 flange?

No, engineers should not swap a Class 150 flange for an ANSI 300 flange in high-pressure systems. Class 150 flanges may leak or fail if the pressure is too high.

How do the bolt patterns compare between the two classes?

ANSI 300 flanges use more bolts and have a larger bolt circle than Class 150 flanges. This design helps them seal better under higher pressure.

Does the material change between Class 150 and ANSI 300 flanges?

Both classes often use the same materials, such as carbon steel or stainless steel. ANSI 300 flanges may need higher-grade materials for extra strength.

Which industries use Class 150 and ANSI 300 flanges most?

Water treatment and HVAC systems use Class 150 flanges. Oil, gas, and power plants use ANSI 300 flanges for higher pressure and temperature needs.

How does temperature affect the pressure rating of each flange class?

As temperature rises, the pressure rating drops for both classes. ANSI 300 flanges still hold more pressure than Class 150 flanges at the same temperature.

Are valves for Class 150 and ANSI 300 flanges interchangeable?

No, valves for each class match the flange’s pressure rating and bolt pattern. Using the wrong valve can cause leaks or unsafe conditions.

Tip: Always check the system’s pressure and temperature before choosing a flange or valve.
