You need to know valve words to make good choices at work. This guide helps you know each valve type. It does not matter if you use a pneumatic ball valve, a butterfly valve, or a ball valve. You can use this glossary to learn about any valve. It also covers valves made to api 602 standards. When you know the right valve words, you can pick, put in, and take care of each valve with confidence. Use this guide to help you choose and use valves every day.

API 602 Overview

Standard Scope

API 602 gives rules for small steel gate valves. The American Petroleum Institute made this standard. It helps you pick the right valve for tough, small jobs. API 602 is for valves made from forged steel. These valves fit well in tight places. They can handle hard work and high pressure. You can look at the table below for main facts:

API 602 valves are strong because they use forged steel. This makes them last longer than many other valves. You will see API 602 valves where space is small and strength matters most.

Applications

API 602 valves are used in many fields. The American Petroleum Institute made this for oil and gas jobs. These valves also work in refineries and pipelines. They are good for high-pressure boilers too. The table below shows where you might use these valves:

You can trust API 602 valves for small pipes and systems. These valves help control flow where big valves cannot fit.

Key Features

API 602 valves have special things that make them useful. They are small and easy to fit in tight spaces. The forged steel body makes them strong and reliable. These valves use materials that fight rust. You can use them in rough places. API 602 valves also close tightly. This means less leaking and better control.

API 602 is like other API standards, such as API 600. API 600 is for bigger, cast steel valves. API 602 is for smaller, forged steel valves. The table below shows how they are different:

You should know about trim numbers and OS&Y. These words help you choose the right valve. API 602 helps you find valves that meet strict rules.

Valve Types

Gate Valve

You use a gate valve when you want to start or stop the flow in a pipeline. This valve works by lifting a gate out of the path of the fluid. When you turn the handwheel, the gate moves up or down. You get a straight path for the fluid when the gate is fully open. This design gives you very little pressure drop. You should not use a gate valve to control flow. It works best for full open or full closed positions.

A gate valve is common in oil, gas, and water systems. You find it in places where you need a tight shut-off. The forged body makes this valve strong and reliable. You can use it in high-pressure and high-temperature jobs. The compact size helps you fit it in tight spaces. You often see a gate valve in small pipelines and systems that need a secure shut-off.

?? Tip: Always open or close a gate valve fully to avoid damage to the gate and seat.

Here is a table that shows how a gate valve compares to other main valve types in API 602:

Globe Valve

You choose a globe valve when you need to control or regulate flow. This valve has a disc that moves up and down against the seat. You can adjust the flow by turning the handwheel. The globe valve gives you good shut-off and precise control. You often use this valve in oil, gas, and chemical plants.

A globe valve made to API 602 standards uses forged steel. This makes it strong and safe for high-pressure jobs. You can trust this valve for tough service. The design lets you do easy maintenance. You get a tight shut-off every time. The globe valve also works well in high temperatures.

Here is a table that shows the key features, uses, and advantages of a globe valve:

You can use a globe valve for shut-off, throttling, and flow control. This valve type gives you flexibility in many systems.

Check Valve

You use a check valve to let fluid flow in one direction only. This valve stops backflow, which can damage pumps and other equipment. You find two main types in API 602: piston check valve and swing check valve. The piston check valve uses a piston to block reverse flow. The swing check valve uses a disc that swings open with flow and closes if flow reverses.

When you pick a check valve, you need to think about several things:

1. Understand the application. Know the fluid type and flow conditions.
2. Determine the correct size. Match the pipe size and flow needs.
3. Select the valve type. Choose from swing, ball, lift, wafer, or dual plate check valves.
4. Choose the material. Pick the right body, trim, and sealing materials.
5. Consider end connections. Decide how you will connect the valve for easy maintenance.
6. Evaluate special requirements. Look at leakage, orientation, pressure drop, and back pressure.
7. Make sure the valve meets standards. Check for compliance with industry rules.
8. Pick a good manufacturer. Review the warranty and support.

A check valve is important in systems where you want to protect pumps and keep flow moving in the right direction. You see this valve in pipelines, water systems, and chemical plants. The compact design fits well in small spaces.

Note: Always install a check valve in the right direction. Look for the flow arrow on the valve body.

You can use a check valve with other valve types, such as a ball valve or butterfly valve, to make your system safer and more reliable. You often see a check valve paired with a gate valve or globe valve for extra shut-off protection.

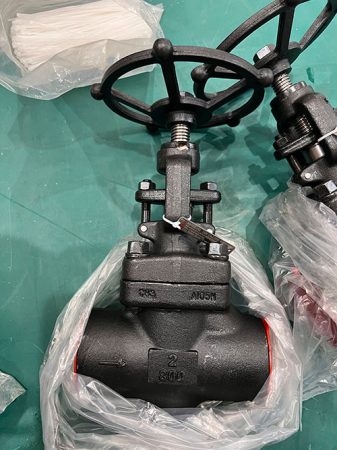

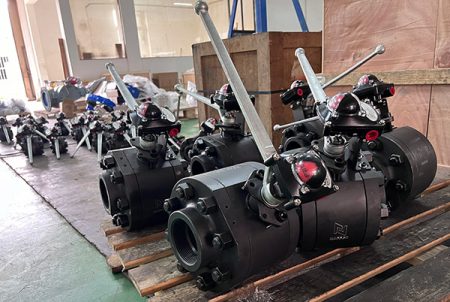

Forged Valve

You often need a forged valve when you want strength and reliability in your system. A forged valve is made by shaping metal under high pressure. This process makes the valve body very strong. You can use a forged valve in places where you need to handle high pressure or temperature. The compact size of a forged valve helps you fit it into tight spaces.

You will find forged valves in many industries. Oil and gas plants use these valves because they last a long time. Chemical plants also use forged valves for safety. You can trust a forged valve to work well in tough jobs. The design of a forged valve gives you better resistance to leaks. You get a tight seal every time you use this type of valve.

A forged valve can come in different types. You may see a forged gate valve, a forged globe valve, or a forged check valve. Each type has its own job. For example, a forged gate valve lets you start or stop flow. A forged globe valve helps you control flow. A forged check valve stops backflow. You can also find a forged ball valve, which uses a round ball to control flow. The ball inside the valve turns to open or close the path.

Here is a list of common forged valve types you might use:

• Forged gate valve
• Forged globe valve
• Forged check valve
• Forged ball valve

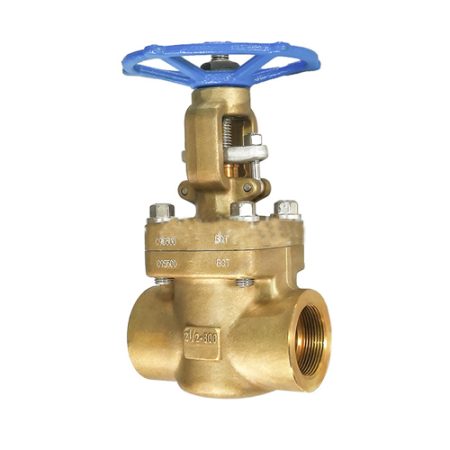

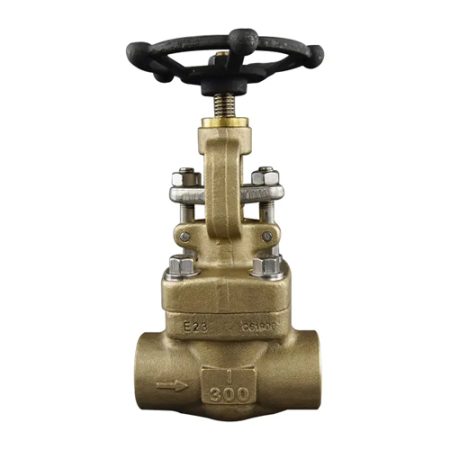

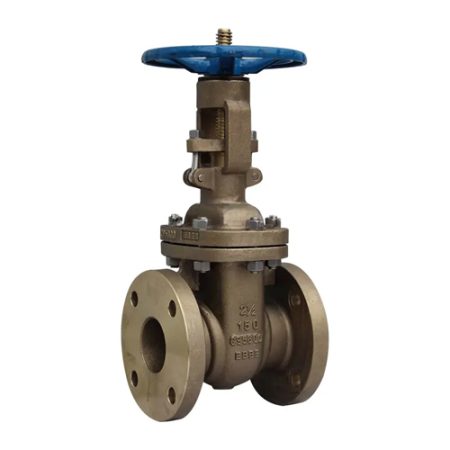

OS&Y

You may see the term OS&Y when you look at a valve. OS&Y stands for Outside Screw and Yoke. This feature is important in many API 602 valves. You can spot an OS&Y valve by looking at the stem. The stem moves up and down outside the valve body. This movement helps you see if the valve is open or closed.

The OS&Y design gives you several benefits. You get a clear visual sign of the valve’s position. When the stem is up, the valve is open. When the stem is down, the valve is closed. This makes it easy to check the valve during inspections. You can also spot problems quickly.

Here is a table that shows the main features of OS&Y in a valve:

You often find OS&Y in gate valves, globe valves, and even some ball valves. This feature is common in fire protection systems. You can use an OS&Y valve when you need to check the valve position from a distance. The design also helps keep the stem threads clean and away from the fluid inside the valve.

?? Note: Always check the stem position on an OS&Y valve before starting work. This helps you avoid mistakes and keeps your system safe.

You can use an OS&Y ball valve for quick shut-off and easy inspection. The ball inside the valve turns to open or close the flow. The OS&Y stem lets you see the valve’s status right away. You get both safety and control with this design.

Valve Components

Body

You can think of the body as the main part of any valve. The body holds all the other pieces together. It forms the outer shell and gives the valve its shape. When you look at a valve, you see the body first. The body must be strong because it faces high pressure and tough conditions. In an API 602 valve, the body is usually made from forged steel. This makes the valve last longer and work better in small spaces.

The body has openings for the fluid to enter and leave. You connect the valve body to pipes using threads, welding, or flanges. The body also supports the ball or disc inside the valve. If you use a ball valve, the body holds the ball in place so it can turn and control flow. The body must fit tightly with other parts to stop leaks. You need a good body to make sure your valve works well every time.

Bonnet

The bonnet covers the top of the valve body. You can think of the bonnet as a lid that keeps everything inside safe. The bonnet holds the stem and helps keep pressure inside the valve. In an API 602 valve, the bonnet is very important for safety and performance. You may see different types of bonnets, such as bolted, welded, or pressure-sealed. Each type helps the valve handle different jobs.

The bonnet also helps you reach the inside of the valve for repairs. If you need to fix the ball or stem, you remove the bonnet. The bonnet must seal tightly to stop leaks. A strong bonnet keeps the valve safe even when pressure is high. You often see bonnets in gate valves, globe valves, and ball valves. The bonnet works with the body to make the valve strong and reliable.

?? Note: The bonnet is essential for the integrity of API 602 valves. It covers the valve stem and helps maintain pressure, which is critical for the valve’s performance.

Stem

The stem connects the handwheel or actuator to the ball or disc inside the valve. When you turn the handwheel, the stem moves the ball or disc to open or close the valve. The stem must be strong because it moves every time you use the valve. In a ball valve, the stem turns the ball to control flow. In a gate valve, the stem lifts or lowers the gate.

You may see different stem designs in API 602 valves. Some valves use an outside screw and yoke, while others use an inside screw. The stem design affects how easy it is to use and fix the valve. A good stem design stops leaks and keeps the valve safe. Some stems have an anti-blow out feature. This keeps the stem from popping out when the valve is under pressure.

Here is a table that shows how stem design affects valve operation:

You need to check the stem often to make sure the valve works well. If the stem wears out, the ball or disc may not move right. This can cause leaks or make the valve hard to use. Always pick a valve with a strong stem for better safety and longer life.

Seat

You will find the seat inside every valve. The seat forms the surface where the disc or ball presses to stop flow. When you close a valve, the seat creates a seal. This seal keeps fluid from leaking. The seat must fit tightly with the disc or ball. If the seat wears out, the valve will not hold pressure.

You can choose from many seat materials. Each material works best for certain jobs. Some seats use PTFE. This material resists chemicals and gives a reliable seal. Rubber seats cost less and seal well, but they do not last as long. Metal seats handle high pressure and last longer, but they may cost more. Ceramic seats resist wear and last a long time, but they can break if hit. PEEK seats resist both chemicals and heat, but they cost more than rubber.

Here is a table to help you compare common seat materials in API 602 valves:

You should pick the right seat for your valve. If you use a ball valve, the seat must match the ball shape. This helps the valve seal tightly. In a gate valve, the seat lines up with the gate. The seat in a globe valve matches the disc. Always check the seat for damage during maintenance. A good seat keeps your valve working well.

Disc

The disc is the part inside the valve that moves to block or allow flow. When you turn the handwheel or actuator, the disc moves against the seat. In a gate valve, the disc looks like a flat gate. In a globe valve, the disc has a round shape. In a ball valve, the disc is actually a ball with a hole through it.

You need the disc to fit tightly with the seat. This fit stops leaks and controls flow. If the disc wears out, the valve will not seal. You should check the disc for scratches or dents. A damaged disc can cause leaks or make the valve hard to use.

Some discs use special coatings to last longer. You may see discs made from stainless steel or other strong metals. In a ball valve, the ball must be smooth and round. This helps the valve open and close with less effort. The disc in a check valve moves by itself. It opens when fluid flows forward and closes if flow reverses.

?? Tip: Always inspect the disc or ball during valve maintenance. A clean, smooth disc helps your valve last longer.

Packing

Packing is the material you find around the valve stem. Packing keeps fluid from leaking out where the stem passes through the valve body. You need good packing to keep your valve safe and leak-free. Most packing uses rings made from soft materials. Common packing materials include graphite, PTFE, and other flexible compounds.

You should check the packing often. If you see leaks around the stem, the packing may need tightening or replacing. In a ball valve, the packing keeps the stem sealed as you turn the ball. In a gate valve or globe valve, the packing seals the moving stem. Good packing helps your valve work under pressure.

You can adjust the packing with a gland. The gland presses the packing tighter around the stem. If you over-tighten the packing, the valve may become hard to turn. If you leave it too loose, the valve may leak. Always follow the valve maker’s instructions when you adjust packing.

?? Note: Replace packing if you see signs of wear or leaks. Fresh packing helps your valve last longer and keeps your system safe.

Gland

You will find the gland in every valve that uses packing. The gland presses the packing around the stem. This helps stop leaks and keeps your valve safe. You can adjust the gland by tightening or loosening the bolts. When you turn the bolts, the gland moves down and squeezes the packing. This makes a tight seal around the stem.

If you use a ball valve, the gland helps keep the stem sealed as you turn the ball. The gland works with the packing to stop fluid from leaking out. You should check the gland often. If you see leaks near the stem, you may need to adjust the gland. Always follow the instructions from the valve maker.

Here is a table to help you understand the gland in different valve types:

You need to balance the gland pressure. If you tighten the gland too much, the valve stem may become hard to turn. If you leave it too loose, the valve may leak. You should always use the right tools when you adjust the gland. This helps you keep your valve working well.

?? Tip: Check the gland and packing during every valve inspection. This helps you catch leaks early and keep your system safe.

Yoke

The yoke supports the upper parts of the valve. You will see the yoke holding the stem, gland, and handwheel in place. The yoke connects these parts to the valve body. This makes the valve strong and easy to use. If you use a ball valve, the yoke helps keep the stem and ball lined up.

You can spot the yoke as a frame above the valve body. The yoke gives you space to work on the stem and gland. You can remove the yoke if you need to fix the valve. The yoke also helps you see the stem move when you open or close the valve.

Here are some key points about the yoke:

• The yoke supports the stem and gland in every valve.
• You can use the yoke to check the position of the ball or gate.
• The yoke makes it easier to do valve maintenance.
• You will find the yoke in gate valves, globe valves, and some ball valves.

If you need to replace the stem or gland, you may need to remove the yoke. Always follow safety steps when you work on the yoke. The yoke helps your valve last longer and work better.

Handwheel

You use the handwheel to open or close the valve. The handwheel sits at the top of the valve. When you turn the handwheel, the stem moves. This opens or closes the ball, gate, or disc inside the valve. The handwheel gives you control over the flow in your system.

If you use a ball valve, the handwheel turns the stem, which rotates the ball. This lets you start or stop flow quickly. In a gate valve, the handwheel lifts or lowers the gate. In a globe valve, the handwheel moves the disc up or down. You should always turn the handwheel slowly to avoid damage.

Here is a list of handwheel tips:

• Turn the handwheel gently to protect the valve stem.
• Use the handwheel to check if the valve is open or closed.
• If the handwheel feels stiff, check the gland and packing.
• Always use the right handwheel for your valve type.

You may see different handwheel shapes. Some are round, while others have spokes. The handwheel must fit your hand so you can turn the valve easily. If the handwheel breaks, you should replace it right away. A good handwheel helps you control the ball or gate inside the valve.

?? Note: Always check the handwheel before you use the valve. A smooth handwheel makes it easier to control the ball and keep your system safe.

Backseat

You will find the backseat as an important part inside many types of valve. The backseat gives you extra protection against leaks. When you close the valve fully, the stem moves up and presses against the backseat. This action creates a seal between the stem and the bonnet. You get a second barrier that helps stop fluid from escaping the valve.

You often see the backseat in gate valve, globe valve, and even some ball valve designs. The backseat works best when you need to replace or adjust the packing while the valve stays under pressure. You can keep the system running and avoid shutting down the whole line. The backseat lets you do maintenance safely.

You should always check if your valve has a backseat feature. Not every ball valve or gate valve includes a backseat. Some ball valve types use a different design and may not have this extra seal. If you work with high-pressure systems, the backseat gives you more safety.

You will find the backseat most useful in ball valve and gate valve applications where you need to keep the system sealed during repairs. The backseat gives you peace of mind. You know the valve will protect your system from leaks, even when you work on the packing.

Here is a table to help you remember where you might find a backseat in different valve types:

Valve Specifications

Pressure Class

You need to know the pressure class when you choose a valve. The pressure class tells you how much pressure the valve can handle safely. This is one of the most important basic specifications for any valve. You will see pressure classes like 150, 300, 600, 900, 1500, 2500, 4500, and 800. Each class matches a certain range of temperatures. The higher the pressure class, the more pressure the valve can take. You must always check the maximum allowable working pressure before you install a valve. This keeps your system safe.

Here is a table to help you understand the pressure classes and their temperature ranges:

You should always match the pressure class to your system’s needs. If you use a ball valve, you must check the maximum allowable working pressure and the maximum operating pressure. This helps you avoid leaks or damage. The right pressure class gives you peace of mind.

Temperature Rating

Temperature rating is another key part of valve specifications. This rating tells you the highest and lowest temperatures the valve can handle. You must check this before you pick a valve for hot or cold jobs. If you use a ball valve in a high-temperature system, you need a valve that can stand the heat. If you use a valve in a cold place, make sure it will not crack or leak.

The temperature rating works with the pressure class. As the temperature goes up, the maximum allowable working pressure may go down. Always check both ratings together. This helps you pick the right ball valve for your job. You keep your system safe and avoid costly repairs.

End Connections

End connections are the way you attach a valve to pipes. You have several choices for end connections. Each type has its own use and advantage. You must pick the right end connection to match your system and make maintenance easy.

Flanged

Flanged ends use bolts and gaskets to join the valve to the pipe. You get a strong, leak-proof seal. Flanged ball valves are easy to remove for repairs. You often see flanged ends in large or high-pressure systems. You can trust this connection for safety and easy service.

Threaded

Threaded ends screw onto the pipe. This makes installation quick and simple. You can use threaded ball valves in small systems or where you need to take the valve out often. Threaded ends work well for low to medium pressure jobs. You save time and money with this connection.

Welding

Welding ends give you a permanent, strong joint. You can pick socket weld or butt weld types. Socket weld connections fit the pipe into a socket before welding. Butt weld connections join the pipe and valve end-to-end. Welded ball valves are best for high-pressure or high-temperature jobs. You get a smooth flow path and fewer leaks.

Extended Body

Extended body ends give you extra length on the valve. This helps when you need to insulate the valve or fit it into special spots. You often see extended body ball valves in systems with thick pipe walls or where you need more room for welding.

Here are the main end connection types and their advantages:

• Socket weld gives you a strong, leak-proof connection for high-pressure jobs.
• Threaded ends make installation and maintenance easy.
• Butt weld connections offer a smooth flow and reduce pressure drop.
• Flanged ends allow for quick removal and repair.

You must always check the basic specifications for end connections before you choose a valve. The right end connection helps your ball valve last longer and work better.

?? Tip: Always match the end connection to your pipe type and job needs. This makes your system safer and easier to maintain.

Trim Numbers

You need to know about trim numbers when you select a valve for your system. Trim numbers help you pick the right materials for the inside parts of a valve. These numbers are important because they tell you what the disc, seat, stem, and sleeve are made of. Each trim number stands for a unique set of materials. You can find trim numbers listed in the API 602 standard.

Trim numbers make it easy to choose a valve that matches your service needs. If you use a ball valve in a place with high pressure or special chemicals, you want the right trim. The trim number tells you if the ball, seat, and stem can handle your job. You do not have to guess or check each part. You just look up the trim number and know what you get.

Here is what you should remember about trim numbers:

• Trim numbers are unique codes for groups of materials inside a valve.
• You will see trim numbers from 1 to 18 in API 602.
• Each number shows the material for the disc, seat, stem, and sleeve.
• The trim number helps you match the valve to your service conditions.
• You can use trim numbers to compare different ball valves and pick the best one.

For example, if you need a valve for a system with hot water, you might pick a trim number with stainless steel parts. If you use a ball valve for oil, you may need a different trim. Always check the trim number before you buy or install a valve. This step keeps your system safe and working well.

?? Tip: Always match the trim number to your process. The right trim number means your ball valve will last longer and work better.

Leakage Class

Leakage class tells you how much a valve can leak when it is closed. You need to know this when you pick a valve for your system. API 602 gives you clear rules for leakage class. Each class has a test that checks how much fluid can pass through a closed valve. The lower the leakage, the better the seal.

You will see leakage classes like Class I, II, III, IV, V, and VI. Each class has its own limits. For most ball valves, you want a tight seal, so you pick a low leakage class. If you use a valve in a system with gas or dangerous fluids, you must choose a valve with a high standard for leakage.

Here is a simple table to help you understand leakage classes:

You should always check the leakage class before you install a ball valve. This step helps you avoid leaks and keeps your system safe. If you use a valve in a place where leaks can cause harm, pick a valve with a strict leakage class.

?? Note: Test your ball valve after installation to make sure it meets the leakage class. This check gives you peace of mind and keeps your system running smoothly.

Standards

API 602

You will see API 602 when you work with small steel valves. This api specification gives rules for forged steel gate, globe, and check valves. These valves are used in places where there is not much space, like on offshore platforms or in small pipes. API 602 helps you pick a valve that is strong and safe. The api specification covers how the valve is made, what it is made from, and how it is tested. You can trust a valve made to API 602 to last in tough jobs.

API 602 is about making valves compact. These valves are lighter and smaller than many others. This helps you fit them into crowded systems. The api specification also makes sure the valve seals well. You get better leak protection, which keeps things safe. If you use a ball valve in a small space, you want it to meet API 602. This means the ball and other parts will work well under pressure.

API 600

API 600 is another important api specification for steel valves. You use API 600 when you need a flanged or butt-welded steel gate valve. These valves are bigger and heavier than API 602 valves. You find them in large pipelines and main process lines. API 600 covers many materials, like carbon steel, stainless steel, and alloy steel. The api specification gives rules for design, making, and testing.

You might wonder how API 600 and API 602 are different. Here is a table to help you see the main differences:

You use API 600 valves when you need to move a lot of fluid. You use API 602 valves when you need a strong, small valve. Both standards help you pick the right valve for your job. If you need a ball valve for a big pipeline, you look at API 600. If you need a ball valve for a tight spot, you look at API 602.

API 598

API 598 is the api specification for checking and testing valves. You use this standard to make sure your valve works before using it. API 598 tells you how to test for leaks, strength, and if the valve works right. You will see tests like shell tests, backseat tests, and closure tests. These tests help you find problems before the valve is put in your system.

API 602 and API 598 work together. API 602 tells you how to build the valve. API 598 tells you how to test it. Here is a table to show how they relate:

You should always check that your ball valve passes the tests in API 598. This helps you know the ball, seat, and stem will work as they should. If you follow both api specifications, you get a valve that is safe and ready to use.

?? Tip: Always pick valves that meet both API 602 and API 598. This helps you avoid leaks and keeps your system working well.

ASME B16.34

You will see ASME B16.34 when you work with industrial valves. This standard gives you the rules for how to design, make, and test a valve. ASME B16.34 covers many types, including gate, globe, and ball valves. You use this standard to check the pressure and temperature ratings for each valve. When you pick a ball valve, you need to make sure it meets ASME B16.34. This helps you keep your system safe.

ASME B16.34 tells you how thick the walls of a valve should be. You also learn how strong the body must be to handle high pressure. You get tables that show you the limits for each size and class. If you use a ball valve in a hot or cold place, you check the temperature rating in ASME B16.34. You can trust a valve that meets this standard to last longer.

?? Tip: Always look for the ASME B16.34 mark on your ball valve. This mark means the valve passed strict tests.

Here is a table to help you remember what ASME B16.34 covers:

You use ASME B16.34 with other api standards. For example, you might pick a ball valve that meets both api and ASME B16.34. This gives you extra safety and better performance.

NACE MR0175

You need to know about NACE MR0175 if you use valves in places with sour gas. This standard helps you pick a valve that will not rust or break when exposed to hydrogen sulfide. NACE MR0175 gives you the rules for choosing materials for each valve. You use this standard with api rules to make sure your ball valve will last in tough jobs.

NACE MR0175 tells you which metals and alloys are safe for sour service. You check the body, stem, and ball to see if they meet the standard. If you use a ball valve in oil and gas fields, you need to make sure it meets NACE MR0175. This helps you avoid leaks and keep your system running.

Here are some key points about NACE MR0175:

• You use it for valves in sour gas service.
• It gives you rules for safe materials.
• You check every part of the ball valve, including the seat and stem.
• You use it with api standards for extra safety.

?? Note: Always ask your supplier if the ball valve meets NACE MR0175 before you buy. This helps you avoid problems later.

You can use NACE MR0175 with other standards like api and ASME B16.34. This makes your valve safer and helps it last longer.

MSS SP-25

You will see MSS SP-25 when you look at valve markings. This standard tells you how to mark each valve with the right information. You use MSS SP-25 to make sure you can read the size, pressure class, and material on every ball valve. This helps you pick the right valve for your job.

MSS SP-25 gives you rules for marking the body, stem, and ball. You see the api number, pressure rating, and material type on the valve. If you use a ball valve in a big system, you need clear markings. This makes maintenance and inspection easier.

Here is a list of what MSS SP-25 covers:

• Size and pressure class markings
• Material identification
• api standard numbers
• Manufacturer’s name or logo
• Special service markings

?? Tip: Always check the markings on your ball valve before you install it. This helps you avoid mistakes and keeps your system safe.

You use MSS SP-25 with other standards like api and ASME B16.34. This makes sure every valve in your system is easy to identify and meets all safety rules.

ASTM

You will see ASTM standards often when you work with valves. ASTM stands for the American Society for Testing and Materials. This group creates rules for materials, testing, and manufacturing. You use ASTM standards to make sure your valve meets quality and safety requirements. If you choose a ball valve for an api job, you need to check the ASTM codes for each part.

ASTM standards help you pick the right material for your valve. You can find codes for carbon steel, stainless steel, and alloy steel. Each code tells you how strong the metal is and how it reacts to heat or chemicals. For example, ASTM A105 covers forged carbon steel, which you often see in api 602 ball valves. ASTM A182 covers forged stainless steel, which works well in places with high temperatures or corrosive fluids.

You need to know the ASTM code for the body, stem, and ball in your valve. The code helps you match the valve to your system’s needs. If you use a ball valve in a chemical plant, you want a material that resists corrosion. ASTM standards give you clear rules for this. You can trust a valve with the right ASTM code to last longer and work better.

Here is a table to help you understand common ASTM codes for api valves:

Materials

Carbon Steel

You often see carbon steel used in many valve applications. This material gives you strength and toughness. Carbon steel works well in most oil and gas systems. You can use a carbon steel valve when you need to handle high pressure. The body of the valve stays strong even when the temperature changes. Many ball valves use carbon steel for the main body and end connections.

Carbon steel resists wear and lasts a long time. You can trust this material for both water and steam service. If you need a valve for a pipeline, carbon steel is a good choice. You will find that a carbon steel ball valve gives you a tight seal. This helps you stop leaks and control flow. You can also use carbon steel valves in chemical plants, but you must check for corrosion risks.

?? Tip: Always check if your ball valve has a coating or lining. This can help protect the carbon steel from rust.

Stainless Steel

Stainless steel gives you better resistance to rust and chemicals. You should pick a stainless steel valve when you work with corrosive fluids. Many ball valves use stainless steel for the ball, stem, and seat. This material keeps your valve working even in harsh environments. You can use a stainless steel ball valve in food, pharmaceutical, and chemical plants.

Stainless steel valves last longer in wet or salty places. You get a smooth surface inside the valve, which helps the ball move easily. This means you can open and close the valve with less force. Stainless steel also handles high temperatures well. You can use a stainless steel ball valve in both hot and cold systems.

Here is a table to help you compare carbon steel and stainless steel for ball valves:

Alloy Steel

You may need alloy steel when you want extra strength or special properties. Alloy steel mixes other metals with iron to make the valve stronger. You can use an alloy steel valve in high-pressure or high-temperature jobs. Many ball valves use alloy steel for the body or the ball itself.

Alloy steel valves work well in power plants and refineries. You get better performance when the system faces extreme heat or pressure. The ball inside an alloy steel valve can resist cracking and wear. You can also use alloy steel valves when you need to handle special fluids. Always check the grade of alloy steel before you pick a ball valve for your job.

Note: Alloy steel ball valves may cost more, but they give you better safety and longer life in tough jobs.

You can choose from many grades of alloy steel. Each grade gives your valve different strengths. You should match the alloy steel to your system’s needs. This helps your ball valve last longer and work better.

Trim Materials

You need to know about trim materials when you choose a valve for your system. Trim materials are the parts inside the valve that touch the fluid. These parts include the seat, stem, disc, and sometimes the ball. The right trim materials help your valve last longer and work better. You should always match the trim to the fluid and the job.

You will see many trim options for a ball valve. Some trims use stainless steel. Others use special alloys or hard coatings. Each trim gives your valve different strengths. For example, a stainless steel trim helps your ball valve resist rust. A hard-faced trim makes the ball and seat last longer in tough jobs.

Here is a table to help you compare common trim materials for a ball valve:

You should always check the trim number when you pick a ball valve. The trim number tells you what materials the valve uses inside. If you use the wrong trim, the ball or seat may wear out fast. This can cause leaks or even damage the valve.

?? Tip: Always match the trim material to your fluid. The right trim keeps your ball valve safe and working longer.

You can ask your supplier for help if you are not sure which trim to use. The right trim makes your valve a better fit for your system. You will save money and avoid problems by picking the best trim for your ball valve.

Non-metallic

You will find non-metallic materials in many modern valve designs. These materials do not use metal. Instead, they use plastics, rubber, or other special compounds. Non-metallic parts help your valve handle special fluids or tough conditions. You often see non-metallic seats, seals, and even some ball parts.

A ball valve with a non-metallic seat can give you a tight seal. PTFE (Teflon) is a common non-metallic seat. It helps your valve resist chemicals and makes the ball move smoothly. Some ball valves use rubber or other soft materials for seals. These seals help stop leaks and make the valve easy to use.

Here are some common non-metallic materials you might see in a ball valve:

• PTFE (Teflon): Good for chemical resistance and smooth ball movement.
• EPDM: Works well with water and steam.
• Viton: Handles high temperatures and strong chemicals.
• Nylon: Gives strength and low friction for the ball.

You should pick a non-metallic material that matches your fluid and temperature. If you use the wrong material, the ball or seat may wear out or leak. Always check the limits for heat and pressure before you use a non-metallic ball valve.

?? Note: Non-metallic materials can make your valve lighter and easier to install. They also help reduce the cost of the ball valve.

You can use a ball valve with non-metallic parts in many places. These valves work well in water systems, chemical plants, and food factories. You get a smooth, easy-to-use valve that lasts longer with the right non-metallic materials.

Automated Valve Glossary

Actuator

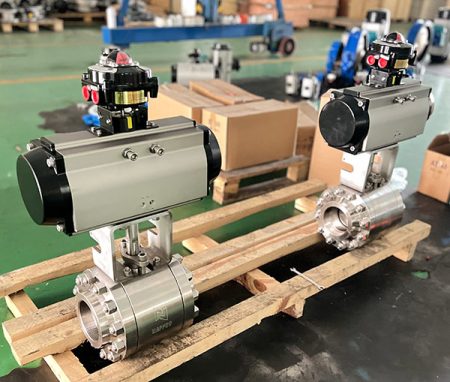

You use an actuator to move a valve without turning it by hand. The actuator gives you control over the ball inside the valve. You can open or close the ball with a button, switch, or signal. This makes your system faster and safer. You see actuators in many places where you need to move a ball quickly or from far away.

There are three main types of actuators you might use with a valve. Each type works in a different way. The table below shows the main types and how they work:

You pick the actuator type based on your job. If you need to move a heavy ball, you might use a hydraulic actuator. If you want to save energy, you might choose an electric actuator. Pneumatic actuators help you when you need the ball to move fast. You see actuators on many ball valves in oil, gas, and water systems.

?? Tip: Always check the size and type of your valve before you pick an actuator. The right match helps your ball last longer and work better.

Control Valve

A control valve helps you manage the flow of fluid in your system. You use this valve to change how much fluid moves through a pipe. The control valve can open, close, or stay partly open. You can use a control valve with a ball, globe, or butterfly design. The ball inside the valve turns to let more or less fluid pass.

You often see control valves in places where you need to keep pressure or flow steady. You might use a control valve in a heating system, water plant, or chemical factory. The control valve works with sensors and controllers. These tools send signals to the actuator, which moves the ball to the right spot. You get smooth and safe control over your system.

You can use a control valve to save energy and protect your equipment. The ball inside the valve moves only as much as needed. This helps you avoid waste and keeps your system running well. You can also use a control valve to stop sudden changes in flow. This protects pumps, pipes, and other valves.

Note: Always check the control valve settings before you start your system. The right settings help your ball and valve last longer.

Positioner

A positioner helps you get the ball in the right spot inside the valve. You use a positioner to make sure the valve opens or closes as you want. The positioner reads the signal from your controller. It then moves the actuator to turn the ball to the correct angle.

You see positioners on many automated valves. The positioner helps you get better control over the ball. You can use a positioner to make small changes in flow. This helps you keep your system steady. The positioner also helps you fix problems fast. If the ball does not move right, the positioner can adjust it.

You can use a positioner with any actuator type. The positioner works with electric, pneumatic, or hydraulic actuators. You get more accurate control over your ball and valve. This helps you meet strict rules for safety and quality.

??? Tip: Check your positioner often. Clean and test it to keep your ball and valve working well.

You now have a better understanding of these valve automation terms. Use this automated valve glossary to help you choose the right ball, actuator, and control tools for your system.

Solenoid

You often see a solenoid in automated valve systems. A solenoid uses electricity to move a small plunger inside the valve. When you send power to the solenoid, it creates a magnetic field. This field pulls the plunger, which opens or closes the valve. You can use a solenoid to control a ball inside the valve quickly and with little effort.

A solenoid valve works well when you need fast action. You might use it to start or stop the flow of water, air, or gas. The solenoid can move the ball to open or close the valve in less than a second. You do not need to turn a handwheel or use a tool. The solenoid does the work for you.

You can find solenoid valves in many places. Some common uses include:

• Water treatment plants
• Oil and gas pipelines
• Chemical mixing systems
• HVAC units

A solenoid valve often has a small size. This makes it easy to fit into tight spaces. You can use a solenoid to control a ball in a valve that is hard to reach. The solenoid can also work with a timer or a sensor. This lets you open or close the valve at the right moment.

Here is a table to help you understand how a solenoid works with a ball valve:

?? Tip: Always check the voltage before you connect a solenoid to your valve. Using the wrong voltage can damage the ball or the valve.

You can use a solenoid to make your valve system safer. If there is a problem, you can shut the valve fast. The solenoid moves the ball to stop the flow right away. This helps protect your equipment and keeps your system running well.

Limit Switch

A limit switch helps you know the position of a ball inside a valve. You use a limit switch to send a signal when the valve is open or closed. The switch touches a part of the valve or the ball. When the ball moves, it pushes the switch. This action sends a signal to your control panel.

You can use a limit switch to check if a ball valve is open or closed from far away. This is helpful in large plants or places where you cannot see the valve. The limit switch gives you peace of mind. You know the ball is in the right spot without guessing.

There are two main types of limit switches for valves:

1. Mechanical limit switch: The ball or valve part touches the switch to send a signal.
2. Proximity limit switch: The switch senses the ball or valve part without touching it.

You can use a limit switch with many types of valves. The switch works well with a ball valve, gate valve, or butterfly valve. The limit switch helps you keep track of the ball position in real time.

Here are some reasons to use a limit switch with your valve:

• You get a clear signal when the ball is open or closed.
• You can connect the switch to alarms or lights.
• You can use the switch to stop pumps or other machines if the valve is not in the right spot.
• You make your system safer and easier to control.

??? Note: Test your limit switch often. Make sure the ball moves the switch every time you open or close the valve.

A limit switch can help you avoid mistakes. If the ball does not move as it should, the switch will not send a signal. You can fix the problem before it causes trouble. The limit switch is a simple tool, but it makes your valve system much better.

Maintenance Terms

Service Conditions

You need to know the service conditions before you choose a valve for your system. Service conditions tell you how the valve will work in real life. You look at things like temperature, pressure, and the type of fluid. You also check if the fluid is clean or dirty. If you use a ball in a hot system, you pick a valve that can handle high heat. If you use a relief valve in a cold place, you make sure it will not crack.

You also think about pressure relief valves when you set up your system. These valves protect your pipes from too much pressure. You use a relief valve to let out extra pressure and keep things safe. You check the service conditions to see if you need a safety relief valve or a body relief valve. You also look at how often you open and close the ball. If you use the ball a lot, you pick a valve that lasts longer.

?? Tip: Always match the valve and ball to your service conditions. This helps you avoid leaks and keeps your system safe.

Fugitive Emissions

Fugitive emissions are leaks that escape from your valve into the air. You want to stop these leaks because they can harm people and the environment. You check the ball and the relief valve for signs of leaks. You also look at the packing and seals inside the valve. If you see leaks, you fix them right away.

You use special valves to lower fugitive emissions. Some valves have extra seals around the ball. You also use a relief valve with tight packing. You test your valve often to make sure it does not leak. You also check the shut-off valve for leaks. If you find a problem, you replace the ball or the packing.

Here is a table to help you remember how to control fugitive emissions:

You keep your system safe by stopping fugitive emissions. You also protect the air and your workers.

Fire-Safe

You need fire-safe valves in places where fire is a risk. A fire-safe valve keeps working even if there is a fire. You use a ball that can seal the valve when heat rises. You also use a relief valve that can handle high temperatures. You test the valve to see if it meets fire-safe rules.

You look for a fire-safe mark on the valve. This mark means the ball and relief valve passed special tests. You also check the body relief valve for fire safety. If you use a shut-off valve in a fire zone, you pick one that is fire-safe. You also use a safety relief valve for extra protection.

?? Note: Always use fire-safe valves and balls in places with fire risk. This keeps your system safe and helps you meet safety rules.

You test your valve for fire safety by heating it and checking if the ball still seals. You also test the relief valve to see if it works after a fire. You keep your system safe by using fire-safe valves and testing them often.

Inspection

You need to inspect every valve in your system to keep things safe and working well. Inspection helps you find problems before they cause leaks or failures. You should check each ball and valve on a regular schedule. This keeps your equipment in good shape and helps you avoid costly repairs.

Start by looking at the outside of the valve. Check for rust, cracks, or signs of leaks. If you see fluid around the ball or valve body, you may have a problem. Use a flashlight to look for damage in hard-to-see spots. You should also check the handwheel and stem. Make sure the ball moves smoothly when you turn the valve.

Next, listen for strange sounds when you operate the valve. A squeak or grinding noise can mean the ball or seat has worn out. If you hear a hiss, you might have a leak. You should always test the valve by opening and closing it. Watch how the ball moves inside. If the ball sticks or feels loose, you may need to repair or replace the valve.

You can use a simple checklist for each inspection:

• Look for leaks around the valve and ball.
• Check the handwheel, stem, and yoke for damage.
• Turn the valve and feel for smooth ball movement.
• Listen for odd noises from the ball or valve.
• Inspect the packing and gland for signs of wear.
• Make sure the markings on the valve are clear.

FAQ

What is the main job of a valve?

You use a valve to control the flow of liquids or gases. The valve can start, stop, or change the direction of flow. You find valves in many systems, like water pipes and oil plants.

How does a ball work inside a valve?

The ball inside a valve turns to open or close the flow path. When you turn the handle, the ball rotates. The hole in the ball lines up with the pipe to let fluid pass or blocks it to stop flow.

Why do you choose a ball valve for some jobs?

You pick a ball valve when you want quick shut-off and easy use. The ball moves with a simple turn. This type of valve gives you a tight seal and works well in many systems.

How do you know if a valve is leaking?

You see drops or wet spots around the valve. Sometimes you hear a hissing sound. You can also feel for moisture near the ball or the valve body. Always check the valve during inspections.

What makes a valve last longer?

You keep a valve working by choosing the right material and doing regular checks. Clean the ball and seat. Replace worn parts. Use the valve as the maker suggests. Good care helps the valve last.

Can you fix a ball valve if it leaks?

Yes, you can fix a ball valve. You may need to tighten the packing or replace the seat. Sometimes you clean the ball. If the valve still leaks, you might need a new ball or other parts.

Where do you use a ball valve most often?

You use a ball valve in water lines, gas pipes, and chemical plants. The ball valve works well in places where you need fast shut-off. You also see this valve in home plumbing and factories.

What is the difference between a ball valve and other valves?

A ball valve uses a round ball to control flow. Other valves, like gate or globe types, use different shapes. The ball valve gives you quick action and a tight seal. You turn the ball to open or close the valve.
